产品型号 : DNXA/H Series
产品名称 : SPDT Multi-pole slide switch (Two Common): Thru-hole Lead

DNIA/H

产品介紹

proimages/pro/DIP-DNX-01-a_h.jpg

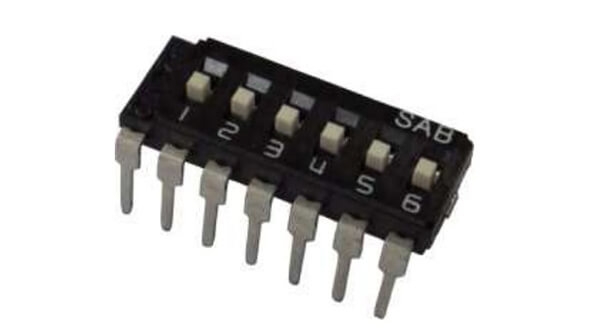

  • SPDT Multipole DIP Switch
  • Design Patented
  • Save sapce for the PCB
  • More Function than the SIP Switch & choice
  • Change over signal circuit
  • Contact Rating
    Switching ……………………………… 25mA, 24VDC
    Non-Switching ……………...……… 100mA, 50VDC
  • Contact Resistance
    Initial ……………..……………………… 50mΩ Max.
    After Life Test ……………........…… 100mΩ Max.
  • Insulation Resistance .………...… 100MΩ min at 500VDC
  • Dielectric Strength ………………… 500VAC/ 1 minute
  • Operating Force…………………….. 1,000g Max.
  • Mechanical Life……………............ 3,000 cycles
  • Electrical Life…………................... 3,000 cycles
  • Cove & Base: Thermoplastic UL 94V-0, Black
  • Actuator: Thermoplastic UL 94-HB, White
  • Movable Contact: Copper Alloy, Gold- or Pure-Tin-plated
  • Terminal Contact & Terminal: Copper Alloy, Gold- or Pure-Tin-plated
  • Tape Sealed: Polyimide film
  • Hand Soldering
    Soldering Iron of 30W or under at 350°C for 3 sec. max. or at 270°C for 5 sec. max.
  • Wave Soldering
    260±5°C for 10 sec. max.
  • Reflow Soldering
    Peak temperature: 245 or 250°C max. The time above 240 or 245°C must be 30 sec. max.
  • Keep all actuators in "OFF" position during soldering and cleaning process
  • Tube: DMIS/ DMIA/ DMIH
  • Tape & Reel: DMIS
  • Actuators all in "OFF" position
P/NNo. Of PoleDim. AQuantity per Tube
DNIS/A/H01 1 4.98mm 105
DNIS/A/H02 2 7.52mm 69
DNIS/A/H06 6 17.68mm 28
